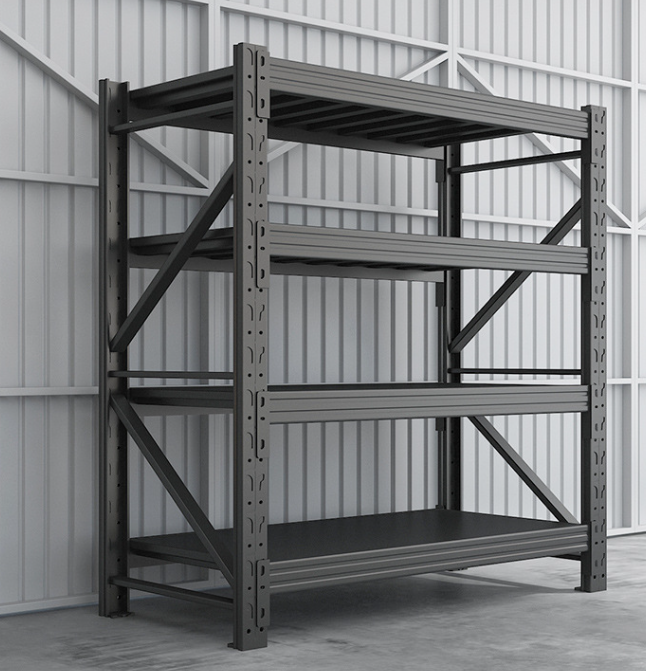

Industrial Heavy-Duty Boltless Steel Shelving Units

Our Boltless Steel Shelving are engineered for strength, flexibility, and efficient space utilization. Each unit consists of uprights, step beams, and steel shelf panels, with customizable dimensions based on your storage needs. Ideal for storing heavy goods with long beams and high load capacity.

Boltless Steel Shelving Key Features

• Manual Handling Friendly – Designed for hand-loaded items, suitable for warehouses, workshops, and stockrooms.

• Fully Adjustable Design – Shelf height is adjustable every 50mm to accommodate various item sizes.

• Expandable Configuration – Compatible with optional side panels, back panels, mesh, and dividers for secure storage.

• Strong Load Capacity – Built to support heavy and bulky items, as well as small parts and irregular-shaped goods.

• Custom Layouts Available – Multiple configurations and components available for different warehouse layouts.

Boltless Steel Shelving Specifications

• Material: High-strength Q235B stainless steel

• Finish: Powder-coated for corrosion resistance

• Load Capacity: 150kg to 500kg per layer (uniformly distributed load)

• Standard Sizes:
    - L2000 × D400 × H2000mm
    - L2000 × D600 × H2000mm

• Upright Frame: 55×45mm, thickness 1.5–1.8mm

• Step Beam Options:
    - 60×35mm or 80×35mm, thickness 1.5–2.0mm

• Shelf Plate: Customized to match rack size

• Note: For rack depth over 1000mm, we recommend using reinforced “3-type” upright frames for added stability.

•


Optimize your warehouse with our durable metal racking systems—offering safety, flexibility, and high efficiency. Contact us for custom sizes and layout solutions.
